SBW high-power voltage stabilizer is designed and manufactured with international advanced compensation technology. When the grid voltage fluctuates or the load current changes, it can automatically keep the programmed voltage stable to ensure the normal operation of electrical equipment.
PLACE OF ORIGIN | Anhui, China |
SHIPPING METHOD | Express, Land Freight, Sea Freight, Air Freight |
PORT | Shanghai, Shenzhen, Guangzhou, Yiwu, Qingdao, etc. |
QUALITY | 1-100 | ≥100 |
Est. Time | 7 | To be negotiated |
Brand :
GE or CustomizedOEM/ODM :
AcceptableSBW Three-Phase Copper Column Voltage Stabilizer
⇒ PRODUCT DESCRIPTION
SBW series three-phase intelligent compensation type power voltage stabilizer, when the external power supply network power main fluctuation or load change causes voltage fluctuation. The voltage stabilizer can quickly respond and automatically maintain the stability of the output. This voltage stabilizer product is similar to other piano-type stabilizers and has the characteristics of large capacity, high efficiency, no wave open acid change, voltage adjustment and flat image. Suitable for any load place. In case of monthly overload and long-term continuous work, the mains/stabilizer can be switched at will. protection, and the voltage stabilizer has the advantages of small size, light weight, convenient use and installation, and reliable operation.

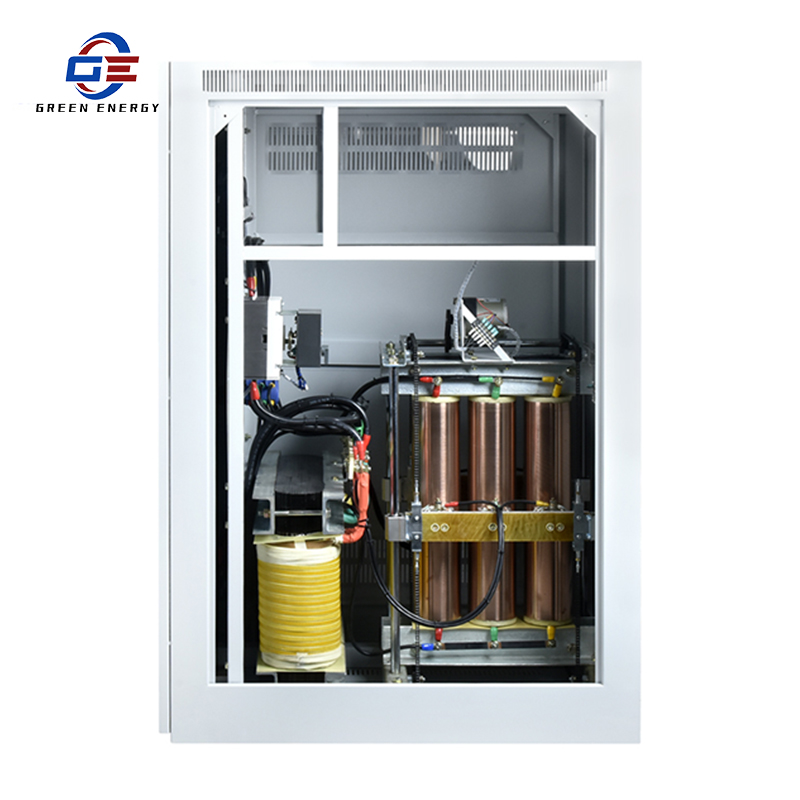

SBW series high-power voltage stabilizer is composed of compensation transformer, voltage regulator, transmission mechanism, brush contact system, box and control system. The surface of the cylindrical winding of the voltage regulating transformer is polished to remove the insulation, and the surface of the conductor is smooth, so as to facilitate the good contact of the brushes. The transmission mechanism is composed of a servo motor, a sprocket and a chain.
⇒ RELATED PRODUCT

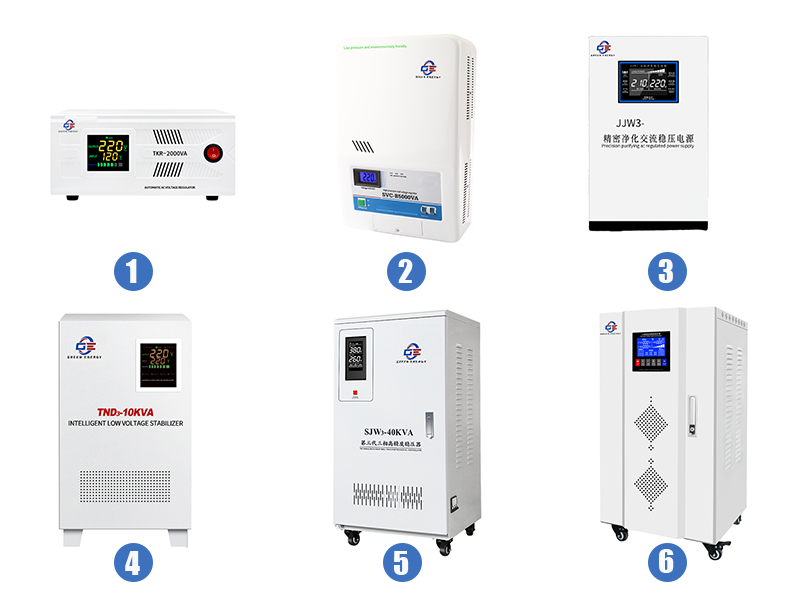

1.TKR Electronic Voltage Stabilizer/Regulator
