110KV-220KV power transformers are used in power plants, substations and large industrial and mining enterprises. They have the characteristics of low loss, low temperature rise, low noise, low partial discharge, and strong short-circuit resistance, thus saving a lot of power loss and operating costs.
| PLACE OF ORIGIN | Anhui, China |
| SHIPPING METHOD | Express, Land Freight, Sea Freight, Air Freight |
| PORT | Shanghai, Shenzhen, Guangzhou, Yiwu, Qingdao, etc. |
| QUALITY | 1-100 | ≥100 |
| Est. Time | 20 | To be negotiated |
Brand :
GE or CustomizedOEM/ODM :

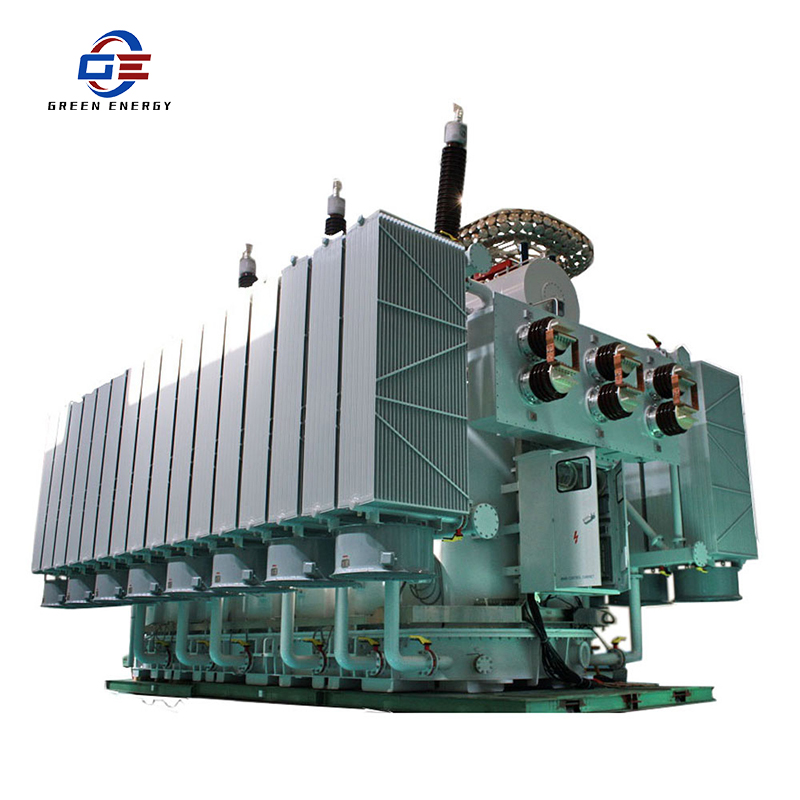

Acceptable110kV-220kV Oil Immersed Power Transformer
⇒ PRODUCT DESCRIPTION
1.High pressure transformer,use Japanese Toshiba analysis software and our company special calculation and validation procedures to the transformer core, winding, implement body, lead, fuel tanks, etc. Parts of the optimal design and carry on the omni -directional validation, ensure product performance. Superior process equipment, elaborate material selecting and efficient manufacturing making the transformer has small volume, light weight, low loss, low partial discharge, low noise characteristics.the product quality is superior energy conservation and environmental protection. easy installation and maintenance, reliable operation and effectively reduced products running costs.
2.the company product SSZ11-40,000/110 through national transformer quality supervision and inspection center short-circuit withstand ability and all type test routine.
3.this product is stable,reliable,economic,environmental protection,applicable to the characteristics of generator, transformer substation, large mining petrochemical enterprise etc.
Technical Data of 3 Phase 2 Winding Power Transformer On-Load Changer
|
Rated Capacity(kVA) |
Rated Voltage |
Vector-group |
No-load Loss(W) |
75℃ Load Loss(W) |
No-load Current(%) |
Short-circuit Impendance(%) |
|
|
HV(kV) |
LV(kV) |
||||||
|
6300 |
110±8×1.25% |
6.3 6.6 10.5 11 |
YNd11 |
10.0 |
36 |
0.80 |
10.5 |
|
8000 |
12.0 |
45 |
0.80 |
||||
|
10000 |
14.2 |
53 |
0.74 |
||||
|
12500 |
16.8 |
63 |
0.74 |
||||
|
16000 |
20.2 |
77 |
0.69 |
||||
|
20000 |
24.0 |
93 |
0.69 |
||||
|
25000 |
28.4 |
110 |
0.64 |
||||
|
31500 |
33.8 |
133 |
0.64 |
||||
|
40000 |
40.4 |
156 |
0.58 |
||||
|
50000 |
47.8 |
194 |
0.58 |
||||
|
63000 |
56.8 |
234 |
0.52 |
||||
Technical Data of 3 Phase 3 Winding Power Transformer On-Load Changer
|
Rated Capacity(kVA) |
Rated Voltage |
Vector-group |
No-load Loss(W) |
75℃ Load Loss(W) |
No-load Current(%) |
Short-circuit Impendance(%) |
||
|
HV(kV) |
HV(kV) |
LV(kV) |
||||||
|
6300 |
110±8×1.25% |
35 37 38.5 |
6.3 6.6 10.5 11 |
YNd11 |
12.0 |
47 |
0.95 |
HV-M V 10.5
HV-LV 17.5-18.5
MV-LV 6.5 |
|
8000 |
14.4 |
56 |
0.95 |
|||||
|
10000 |
17.1 |
66 |
0.89 |
|||||
|
12500 |
20.2 |
78 |
0.89 |
|||||
|
16000 |
24.2 |
95 |
0.84 |
|||||
|
20000 |
28.6 |
112 |
0.84 |
|||||
|
25000 |
33.8 |
133 |
0.78 |
|||||
|
31500 |
40.2 |
157 |
0.78 |
|||||
|
40000 |
48.2 |
189 |
0.73 |
|||||
|
50000 |
56.9 |
225 |
0.73 |
|||||
|
63000 |
67.7 |
270 |
0.67 |
|||||
|
1. 10 type products: no-load loss dropped 10%; Load loss by 5% 2. 11 type products: no-load loss dropped 20%; Load loss by 5% |
||||||||
Technical Data of 3 Phase 3 Winding Non-Fileld Excitation Changer Self Coupling Power Transformer
|
Rated Capacity(kVA) |
Rated Voltage |
Vector-group |
Step-up Combination |
Step-down Combination
|
Short-circuit Impendance(%) |
|||||||
|
HV(kV) |
HV(kV) |
LV(kV) |
No-load Loss(W) |
Load Loss(W) |
No-load Current(%) |
No-load Loss(W) |
Load Loss(W) |
No-load Current(%) |
Step-up |
Step-down |
||
|
31500 |
220±2×2.5%
242±2×2.5% |
115 121 |
6.6 10.5 11 35 37 38.5 |
YNa0d11 |
25 |
117 |
0.57 |
22 |
99 |
0.50 |
HV-MV 12-14
HV-LV 8-12
MV-LV 14-18 |
HV-MV 8-10
HV-LV 28-34
MV-LV 18-24 |
|
40000 |
29 |
144 |
0.57 |
26 |
121 |
0.50 |
||||||
|
50000 |
34 |
170 |
0.50 |
30 |
144 |
0.43 |
||||||
|
63000 |
40 |
201 |
0.50 |
36 |
171 |
0.43 |
||||||
|
90000 |
50 |
276 |
0.43 |
46 |
234 |
0.36 |
||||||
|
120000 |
10.5 11 13.8 15.75 18 35 37 38.5 |
62 |
340 |
0.43 |
56 |
288 |
0.36 |
|||||
|
150000 |
73 |
405 |
0.36 |
66 |
342 |
0.33 |
||||||
|
180000 |
84 |
463 |
0.36 |
76 |
387 |
0.33 |
||||||
|
240000 |
99 |
595 |
0.33 |
89 |
504 |
0.25 |
||||||
Technical Data of 3 Phase 2 Winding Power Transformer On-Load Changer
|
Rated Capacity(kVA) |
Rated Voltage |
Vector-group |
No-load Loss(W) |
75℃ Load Loss(W) |
No-load Current(%) |
Short-circuit Impendance(%) |
|
|
HV(kV) |
LV(kV) |
||||||
|
31500 |
220±8×1.25% |
6.3 6.6 10.5 11 35 37 38.5 |
YNd11 |
38 |
135 |
0.70 |
12-14 |
|
40000 |
45 |
157 |
0.63 |
||||
|
50000 |
54 |
189 |
0.56 |
||||
|
63000 |
63 |
220 |
0.56 |
||||
|
90000 |
80 |
288 |
0.49 |
||||
|
120000 |
10.5 11 35 37 38.5 |
99 |
346 |
0.49 |
|||
|
150000 |
116 |
405 |
0.42 |
||||
|
180000 |
135 |
468 |
0.42 |
||||
|
120000 |
66 69 |
102 |
355 |
0.49 |
|||
|
150000 |
120 |
415 |
0.42 |
||||
|
180000 |
140 |
475 |
0.42 |
||||
Technical Data of 3 Phase 3 Winding Power Transformer On-Load Changer
|
Rated Capacity(kVA) |
Rated Voltage |
Vector-group |
No-load Loss(W) |
75℃ Load Loss(W) |
No-load Current(%) |
Capacity Assignment |
Short-circuit Impendance(%) |
||
|
HV(kV) |
HV(kV) |
LV(kV) |
|||||||
|
31500 |
220±8×1.25% |
69 115 121 |
6.3 6.6 10.5 11 |
YNyn0d11 |
44 |
162 |
0.77 |
100/100/100 100/50/100 100/100/50 |
HV-M V 10.5
HV-LV 17.5-18.5
MV-LV 6.5 |
|
40000 |
52 |
189 |
0.70 |
||||||
|
50000 |
60 |
225 |
0.63 |
||||||
|
63000 |
70 |
261 |
0.63 |
||||||
|
90000 |
10.5 11 35 37 38.5 |
92 |
351 |
0.56 |
|||||
|
120000 |
115 |
432 |
0.56 |
||||||
|
150000 |
135 |
513 |
0.49 |
||||||
|
180000 |
156 |
630 |
0.49 |
||||||
|
240000 |
193 |
780 |
0.45 |
||||||
