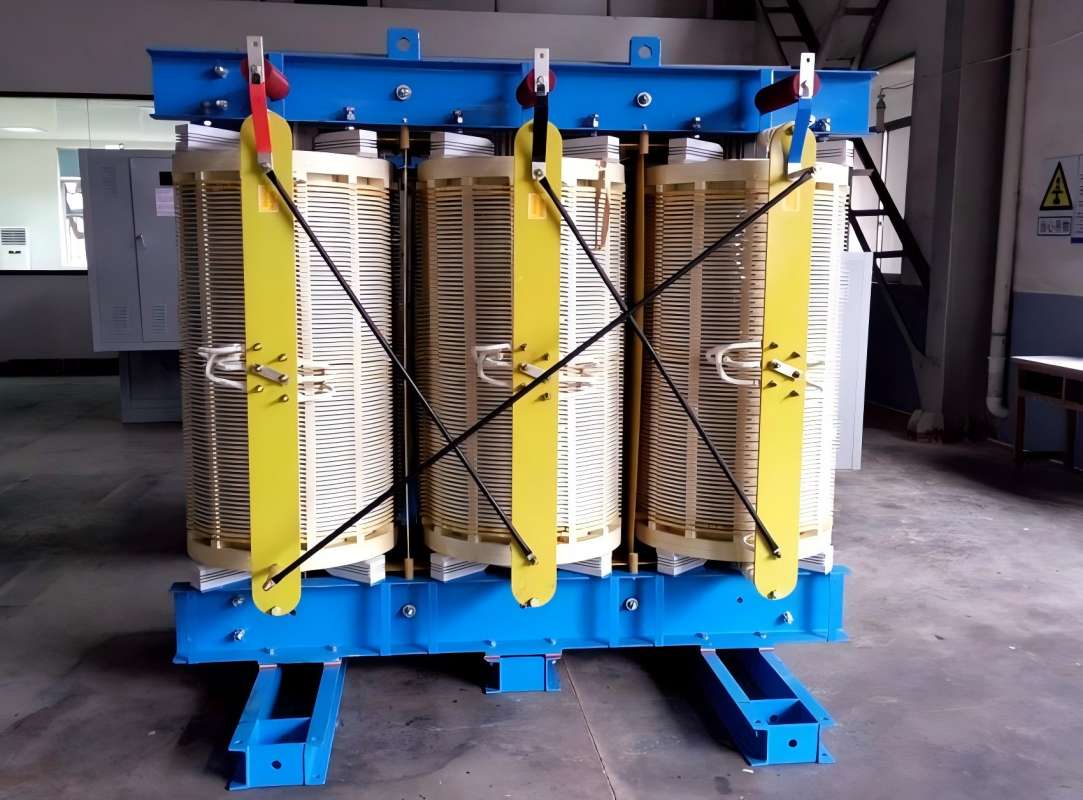

Dry Type Transformer VPI Type

Dry Type Transformer VPI Type

Dry Type Transformer VPI Type

Vacuum pressure impregnated transformer (VPI) is a type of dry type transformer that uses class H polyester resin to impregnate its windings under vacuum and pressure. This eliminates any air gaps or voids in the insulation, enhancing its mechanical strength, dielectric strength, and thermal stability.

Inquire Now

A VPI is suitable for outdoor installations, seismic events, and temperature fluctuations because it has a robust construction, a moisture-resistant enclosure, and a low thermal expansion coefficient. It also has easy maintenance, low fire risk, and high resistance to short circuit current.

Applications:

Environmentally sentitive area: dry type transformer use air as the insulation medium, no oil leakage risks,

Fire-risk area: such as indoor substations, underground substations, hospitals, schools, hotels, shopping malls, etc.

Oil&gas industry: dry type transformer non-flammable, no danger of combustion and explosion

Main Features and Benefits:

  • Fire resistant /Self-extinguishing
  • Environmental friendly
  • Maintenance free
  • Cost-effective option than CRT (cast resin type)
  • Lower installation costs

General Specifications

Power 100kVA-10MVA
Primary Voltage(kV) 4.16, 6, 12.47, 13.2, 15, 20, 24.94, OR OTHERS
Secondary Voltage(V) 208, 240, 400, 480, 2400, 4160 OR OTHERS
Standards IEC60076-1-5; IEEE C57.12.01
Cooling Type AN/AF
Accessories Temperature controller, Cooling fans

Enclosure Options:

  • Stainless-steel
  • Mild steel
  • NEMA 3R or others
