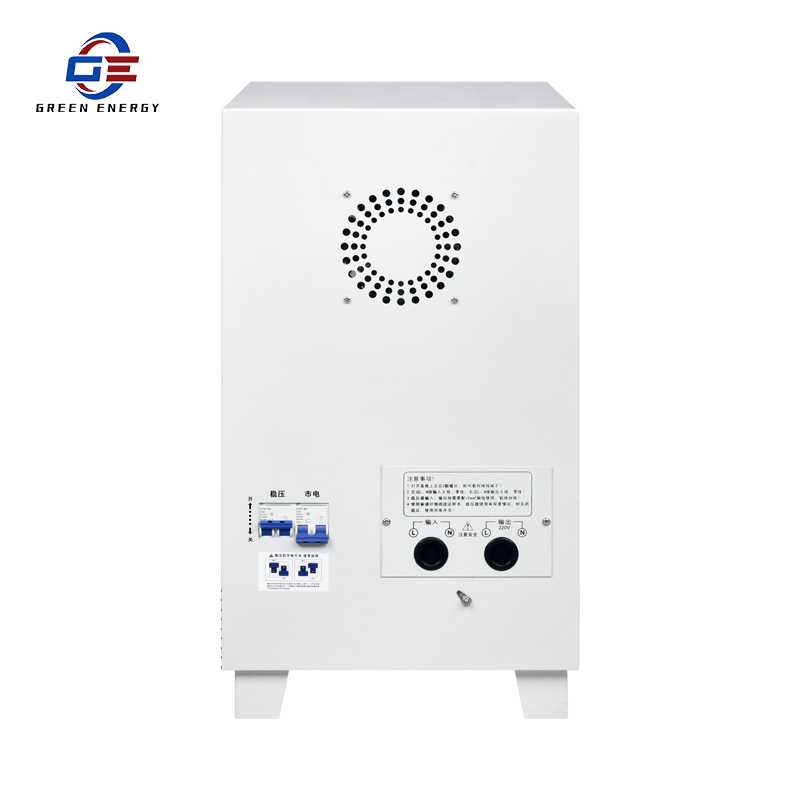

TND Industrial Single-Phase Fully Automatic Compensation AC Voltage Stabilizer

TND Industrial Single-Phase Fully Automatic Compensation AC Voltage Stabilizer
TND Industrial Single-Phase Fully Automatic Compensation AC Voltage Stabilizer
TND Industrial Single-Phase Fully Automatic Compensation AC Voltage Stabilizer
TND Industrial Single-Phase Fully Automatic Compensation AC Voltage Stabilizer

TND Industrial Single-Phase Fully Automatic Compensation AC Voltage Stabilizer

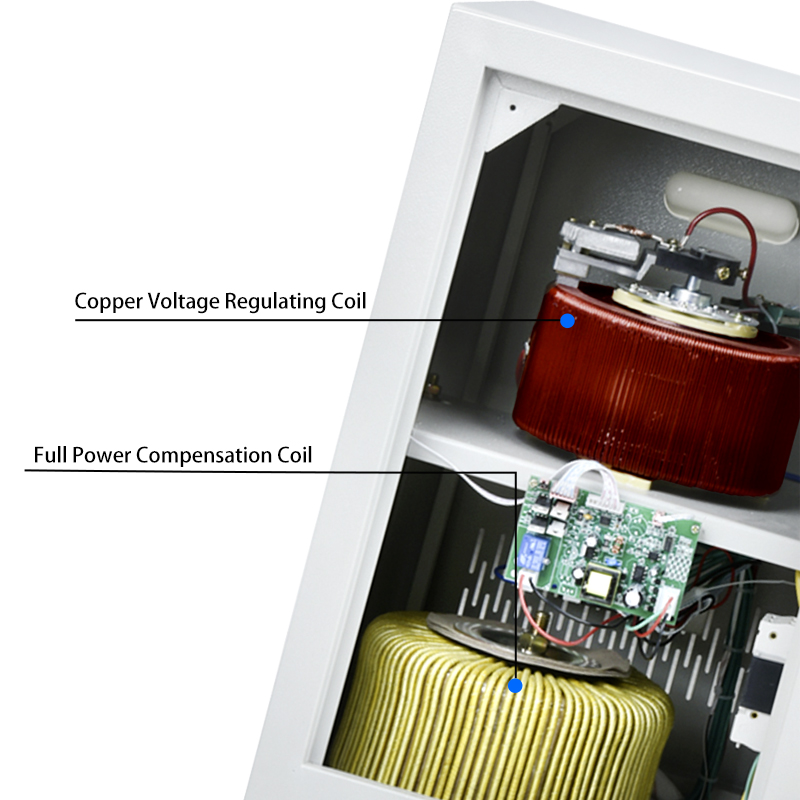

TND series single-phase high-precision automatic AC voltage stabilizer is composed of contact auto-voltage regulator, servo motor, automatic control circuit and so on.



PLACE OF ORIGIN Anhui, China
SHIPPING METHOD Express, Land Freight, Sea Freight, Air Freight
PORT Shanghai, Shenzhen, Guangzhou, Yiwu, Qingdao, etc.



QUALITY 1-100 ≥100
Est. Time 7 To be negotiated

  • Brand :

    GE or Customized

  • OEM/ODM :

    Acceptable
Inquire Now

TKR Single-Phase Electronic Automatic AC High Precision Voltage Stabilizer



⇒ PRODUCT DESCRIPTION

TND series high-precision AC voltage stabilizer, with the function of mains pass-through. It has the advantages of many varieties, complete specifications and beautiful appearance. It has the advantages of undistorted waveform, high efficiency, reliable performance, and long-term operation. It has protection functions such as short delay and overvoltage. Long delay and undervoltage protection functions can be added according to user needs. The product can be widely used in any place where electricity is used, and is an ideal regulated power supply to ensure the normal operation of your electrical equipment. Suitable for office equipment, test equipment, medical equipment, industrial automation equipment, household appliances, lighting systems, communication systems, etc.



Input voltage
Regular models 140V-260/300V, ultra low voltage models 90-260/300V
Output voltage
0.5KVA-5KVA, 220V and 110V 10KVA-50KVA, 220V
Voltage regulation accuracy
220V±3%, 11V±6%
Frequency
50Hz/60Hz
Overvoltage protection value
Output voltage 260V±4V
Undervoltage protection value
Output voltage 186V±4V, regularly not set undervoltage protection
Load power factor
0.8
Adjust time
When the voltage change by10%<1S
Waveform distortion
No additional waveform distortion
Dielectric strength
1500V/1min
Insulation resistance
Single phase >5MΩ
Insulation class
Class E
Working environment
Temperature :-10℃ to +40℃, Humidity: <95%
Effectiveness
>95%
Temperature rise
<60℃
