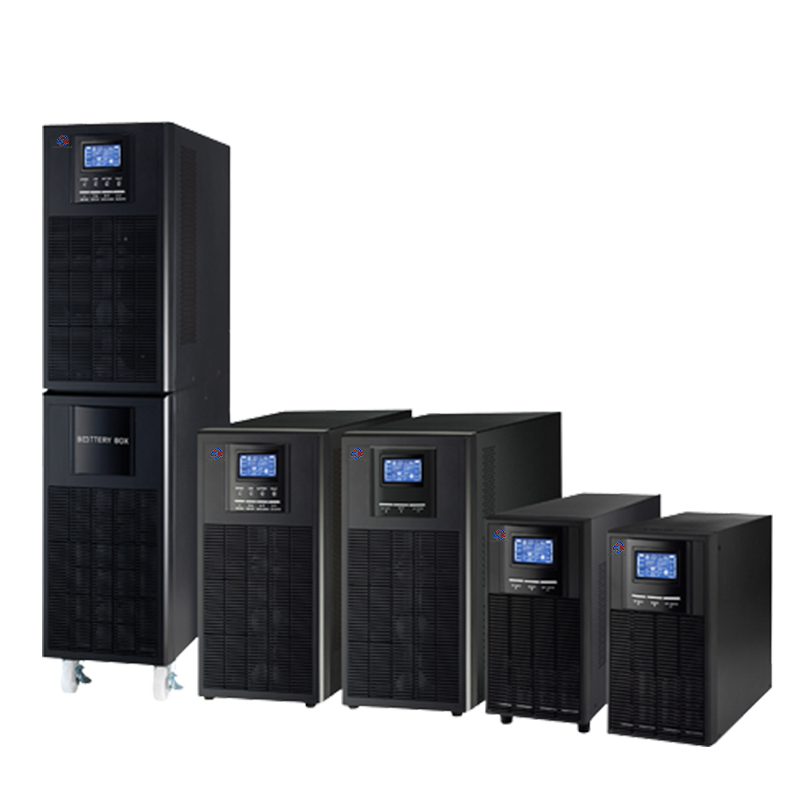

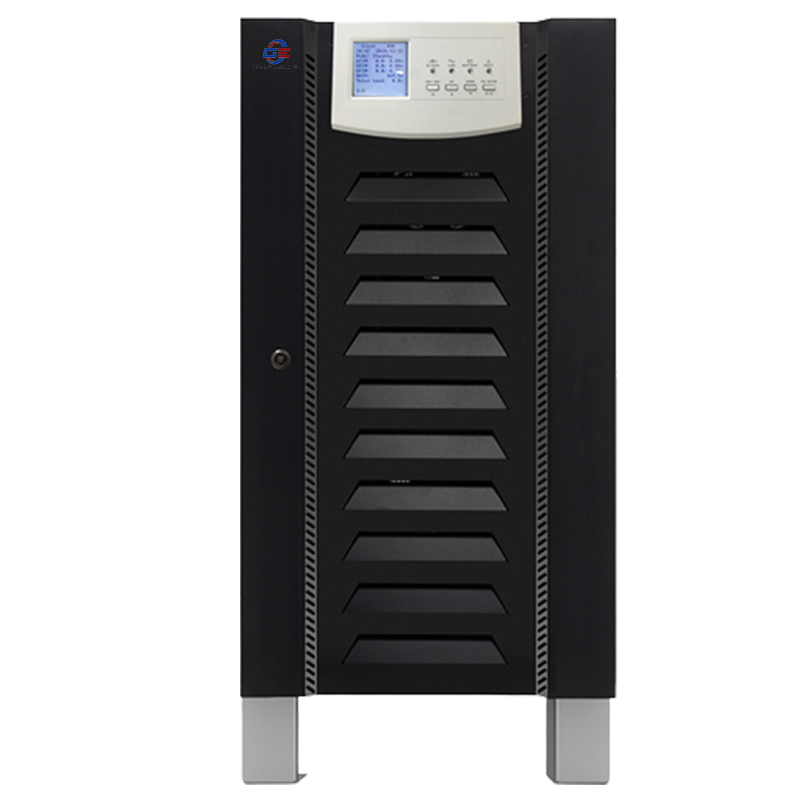

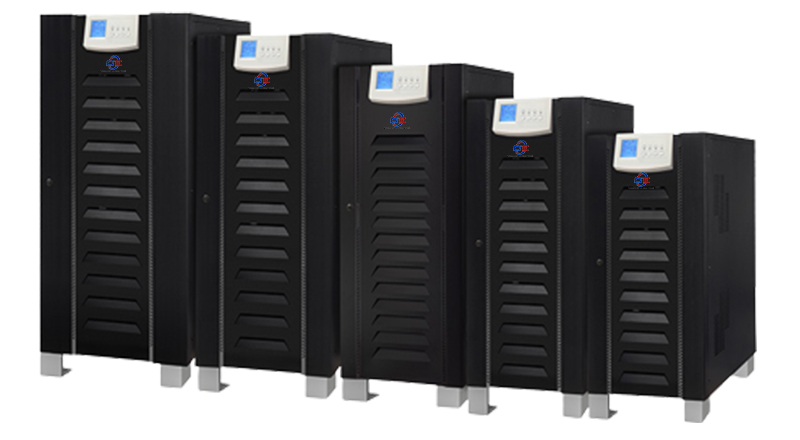

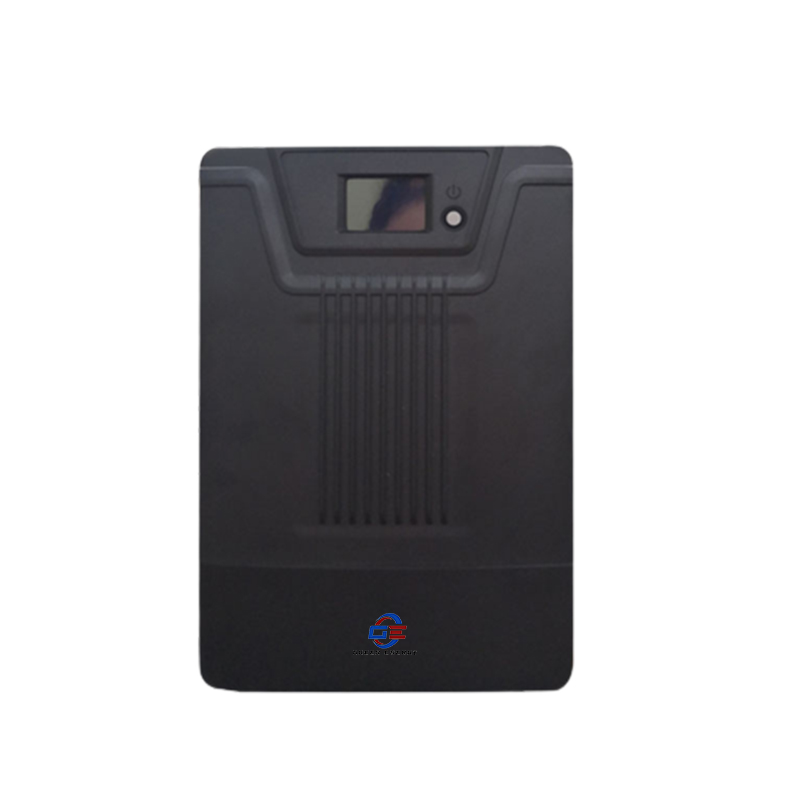

Single Phase Three Phase Online UPS Uninterruptible Power Supply

Single Phase Three Phase Online UPS Uninterruptible Power Supply
Single Phase Three Phase Online UPS Uninterruptible Power Supply
Single Phase Three Phase Online UPS Uninterruptible Power Supply
Single Phase Three Phase Online UPS Uninterruptible Power Supply
Single Phase Three Phase Online UPS Uninterruptible Power Supply

Single Phase Three Phase Online UPS Uninterruptible Power Supply

UPS is an uninterruptible power supply (Uninterruptible Power Supply), which is an uninterruptible power supply with an energy storage device. It is mainly used to provide uninterrupted power supply to some devices that require high power stability.



PLACE OF ORIGIN Anhui, China
SHIPPING METHOD Express, Land Freight, Sea Freight, Air Freight
PORT Shanghai, Shenzhen, Guangzhou, Yiwu, Qingdao, etc.



QUALITY 1-100 ≥100
Est. Time 7 To be negotiated
  • Brand :

    GE or Customized
  • OEM/ODM :

    Acceptable

Single Phase Three Phase Online UPS Uninterruptible Power Supply



⇒ PRODUCT DESCRIPTION


When there is mains power, the machine will be used as an AC stabilized power supply. When the input mains power changes between 140V-300V, the output power supply will be stable between 200V-240V. When the mains voltage is lower than 140V or higher than 300V , The machine automatically cuts off the output power to protect the safety of the user's electrical appliances.

When the mains power fails, the machine will automatically disconnect from the mains power grid, and provide 220V±2%, 50Hz±0.1% to the user’s electrical appliances to work continuously for 3-5 minutes (the load power is not less than 80% of the rated power, and the internal battery sufficient) backup AC power, and remind the user with a second alarm sound.

Since the machine adopts a load sensing device, the working state (on or off) of the machine when the power supply is reversed is completely controlled by the power off (on or off) of the user's electrical appliance. When the user does not need the power supply of the machine, just turn off the power switch of the appliance, and the machine will automatically control and judge after being identified. It eliminates safe no-load consumption and prolongs the battery life in the machine.

The performance indication of the battery in the machine is directly related to the load capacity and time of the machine. To this end, this machine is equipped with an automatic floating charging series, an automatic shutdown system when power is insufficient, and an automatic switching system between charging and discharging. The user usually only needs to connect the mains power, and the machine can complete the above functions.





Product Features

1.LCD screen display, clear and easy to operate

2.Double conversion true online design, using DSPI technology, high input power factor

3.Flexible parallel technology is suitable for different loads and systems

4.ECO working mode improves system efficiency

5.Automatically and evenly float the battery to extend battery life

6.Automatically adjust the mains voltage boost, step down and stable voltage output

7.The isolation effect of the output transformer enables the load to reduce harmonic currents and mains interference

8.The delay soft start function effectively reduces the impact on the equipment and the power grid when the system starts

9.Cold start function, UPS battery pack can directly start UPS power when there is no AC power input

10.When the battery power is exhausted during a power failure, the input UPS power will be automatically turned on, and the battery will be automatically charged to ensure stable operation next time.





Input
Rated Voltage
3×400V(3 Phase + N)
Voltage Range
305-478VAC ±3%@100% load
190-520VAC ±3%@50% load
Frequency Range
46-54Hz or 56-64Hz
Power factor
≥0.99 @ 100% load
Output
Output Voltage
3×400V(3 Phase + N)
Voltage range (battery mode)
±1%
Frequency range (synchronization correction range)
46-54 Hz or 56-64 Hz
Frequency range (battery mode)
50 Hz±0.1 Hz or 60 Hz + 0.1 Hz
Surge ratio
3:1(biggest)
Harmonic distortion
≤2%THD(Pure Load); ≤5%THD(Pure Load)
Conversion time
AC to DC
0
Inverted to bypass
0
Waveform (battery mode)
Pure sine wave
Efficient
Mains mode
90.5%-91.3%
ECO mode
96.0%
Show Description
LCD or LED
Load size, battery capacity, mains mode, battery mode, bypass mode, fault indication
Use Environment
Temperature and humidity
Relative humidity 0-95% and temperature 0-40℃ (non-condensing)
Noise
<60 dB   1 meter
<65 dB  1 meter
